Gait Analysis
Steadys Gait Analysis System
- comprehensive gait analysis
- 10 minutes for clinical gait analysis
- 3D kinematics and dynamic EMG recording by one sensor
- interface optimized for clinical use
Description
Gait analysis using three-dimensional (3D) systems is currently the gold standard for the measurement of gait parameters including spatial, temporal, 3D kinematic and dynamic surface electromyography (EMG). Such information is crucial when considering a rehabilitation approach or for clinical decision-making.

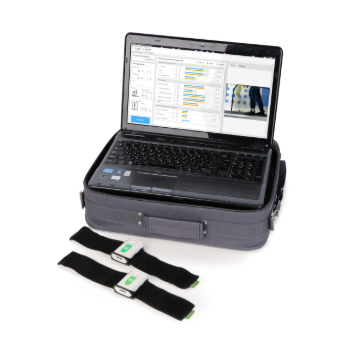

Steadys has various configurations to fit your needs. You can get a system for a quick 2-minute gait screening or an expert one for a comprehensive gait analysis that allows recording all mentioned parameters.
Comprehensive Gait Analysis
Using Steadys system you can analyze the following gait parameters:
- temporal: gait cycle, gait phase (stance phase, single support, double support, first double support, second double support, swing phase), gait rhythm, cadence
- spatial: stride length, gait speed, foot clearance, circumduction
- 3D kinematic: flexion/extension, adduction/abduction, internal/external rotation of the hip, knee and ankle joints
- surface EMG from up to 24 muscles
10 Minutes for Clinical Gait Analysis
Steadys system is optimized to streamline the gait analysis to the maximum. Depending on the configuration used, one exam takes only 5 to 10 minutes!

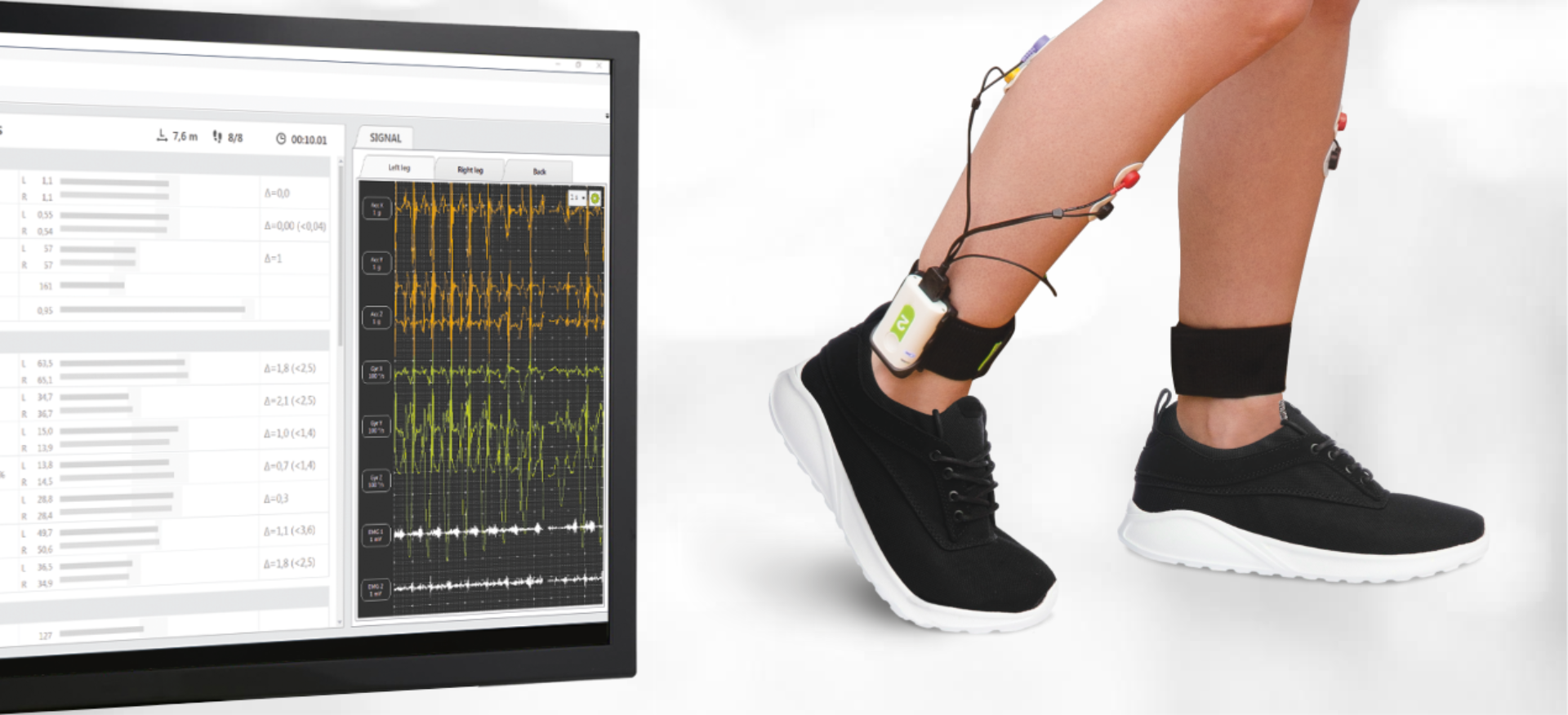

3D Kinematics and Dynamic EMG Recording by One Sensor

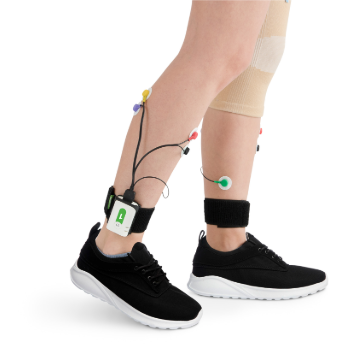

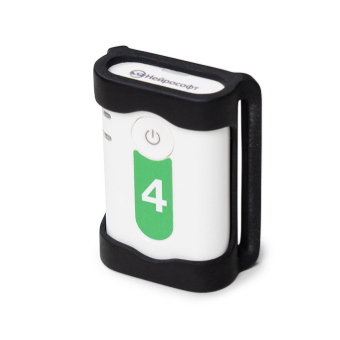

Now you don’t have to use an additional EMG system to analyze dynamic EMG when walking. Both movement and EMG data are recorded with one device — the Neurosens inertial measurement unit (IMU) sensor. These miniature watch-sized electronic devices are positioned on the patient and can record acceleration and angular velocity by three axes (ensured by the built-in 3D gyroscope and 3D accelerometer) as well as EMG data from two differential channels.
Since one device employs movement and EMG data recording, this information is fully synchronized and does not require any additional actions.
Interface Optimized for Clinical Use
Steadys software has been developed specifically for clinical use. It features:
- an option to manage the patient cards
- the built-in report with the reference values for various gait parameters (here is the example of the report)
- international classification of diseases
- an option for integration into the IT structure of healthcare facilities (HL7/GDT)
- simple and intuitive interface
Delivery Set
The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
Neurosens IMU sensor | 3 pcs. |
Charging station | 1 pcs. |
GSM60A05-P1J MeanWell power supply unit | 1 pcs. |
USB cable (A-B) | 1 pcs. |
SCZ-1 mains supply cable | 1 pcs. |
IMU sensor mount | 4 pcs. |
Set of number stickers | 1 pcs. |
Elastic strap (0,2 m) | 2 pcs. |
Elastic strap (0,3 m) | 4 pcs. |
Elastic strap (0,5 m) | 4 pcs. |
Elastic strap (0,7 m) | 2 pcs. |
Elastic strap (1 m) | 2 pcs. |
EMG cable (0,3 m) | 3 pcs. |
EMG cable (0,5 m) | 3 pcs. |
EMG cable (0,7 m) | 1 pcs. |
Disposable ECG electrode D=26 mm | 30 pcs. |
Transpore medical tape | 1 pcs. |
Сonductive and abrasive paste, G999 (EVERI) | 1 pcs. |
USB camera | 1 pcs. |
Wireless router | 1 pcs. |
Software protection dongle | 1 pcs. |
Technical manual «Steadys» | 1 pcs. |
Warranty certificate | 1 pcs. |
Technical Manual «Neurosens Set of IMU Sensors» | 1 pcs. |
User manual «Steadys» | 1 pcs. |
Annex to user manual «Exam Manager» | 1 pcs. |
Package set | 1 pcs. |
Bottom box insert | 1 pcs. |
Upper box insert | 1 pcs. |
USB extension cable | 1 pcs. |
Warranty certificate | 1 pcs. |
License for the use of software «Steadys» | 1 pcs. |
License for Steadys software with additional Rehabilitation software module | 1 pcs. |
