Exercise Testing Software for Poly-Spectrum Digital ECG Systems




Poly-Spectrum-Ergo software is used for exercise stress testing with different cycle ergometers and treadmills. It can operate with Poly-Spectrum-12/E, Poly-Spectrum-8/E or Poly-Spectrum-8/EX ECG systems.

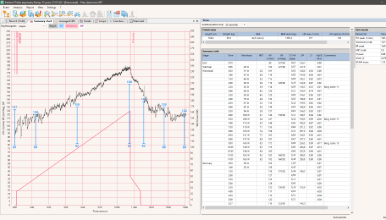

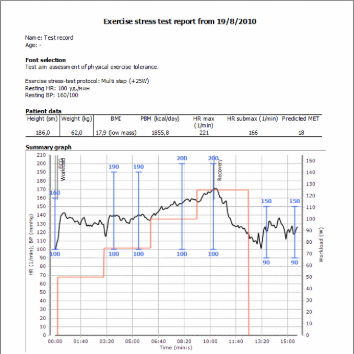

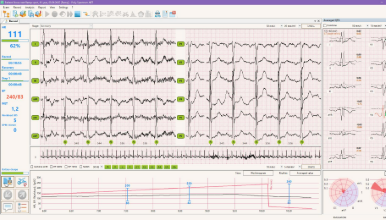

Poly-Spectrum-Ergo module provides flexible software tools for exercise testing including special mode for exercise ECG imaging, all necessary on-line estimates, and the summary protocol generation.

Exercise Testing Protocols:

  • Multistage test (on cycle ergometer or treadmill)
  • One-stage test based on BEE value (on cycle ergometer)
  • Astrand-Test (on cycle ergometer)
  • PWC 170 (on cycle ergometer)
  • Three-stage Swedish protocol by Sjostrand (on cycle ergometer)
  • R. Bruce protocol (on treadmill)
  • J. Naughton protocol (on treadmill)
  • Any protocol constructed by the user (on cycle ergometer or treadmill).

Delivery Set

Equipment for stress testing ''Poly-Spectrum-Ergo''1 pcs.
1 pcs.
Disposable ECG electrode F907950 pcs.
Disposable ECG electrode pediatric PG10S30 pcs.
Cable for stress test device connection to PC1 pcs.
USB сable, А-В, 3 m1 pcs.
License for the use of software "Poly-Spectrum.NET" with additional software module "Poly-Spectrum.NET/Ergo"1 pcs.

The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
