Neuron-Spectrum-63

21-channel Digital EEG System

  • 21 referential EEG channels, 1 ECG channel, 6 differential channels for EOG, ECG, EMG
  • Long-latency EP acquisition: visual, auditory and cognitive
  • Disk, cup and bridge electrodes or electrode caps can be applied
  • Ease of use and comprehensive software
  • Continuous impedance monitoring during acquisition
  • Advanced tools for mathematical analysis of EEG
Neuron-Spectrum-63

Neuron-Spectrum-63

Description

For more than a quarter of a century, Neurosoft has been designing and producing various equipment for neurophysiology. Many years of experience and the meticulous work done by our software and hardware engineers have gone into the creation of the highest quality equipment, which is being successfully used at medical facilities all over the world.

We recommend Neuron-Spectrum-63 for routine EEG (in compliance with International Federation of Clinical Neurophysiology and American Clinical Neurophysiology Society).

21 referential EEG channels, 1 ECG channel, 6 differential channels for EOG, ECG, EMG

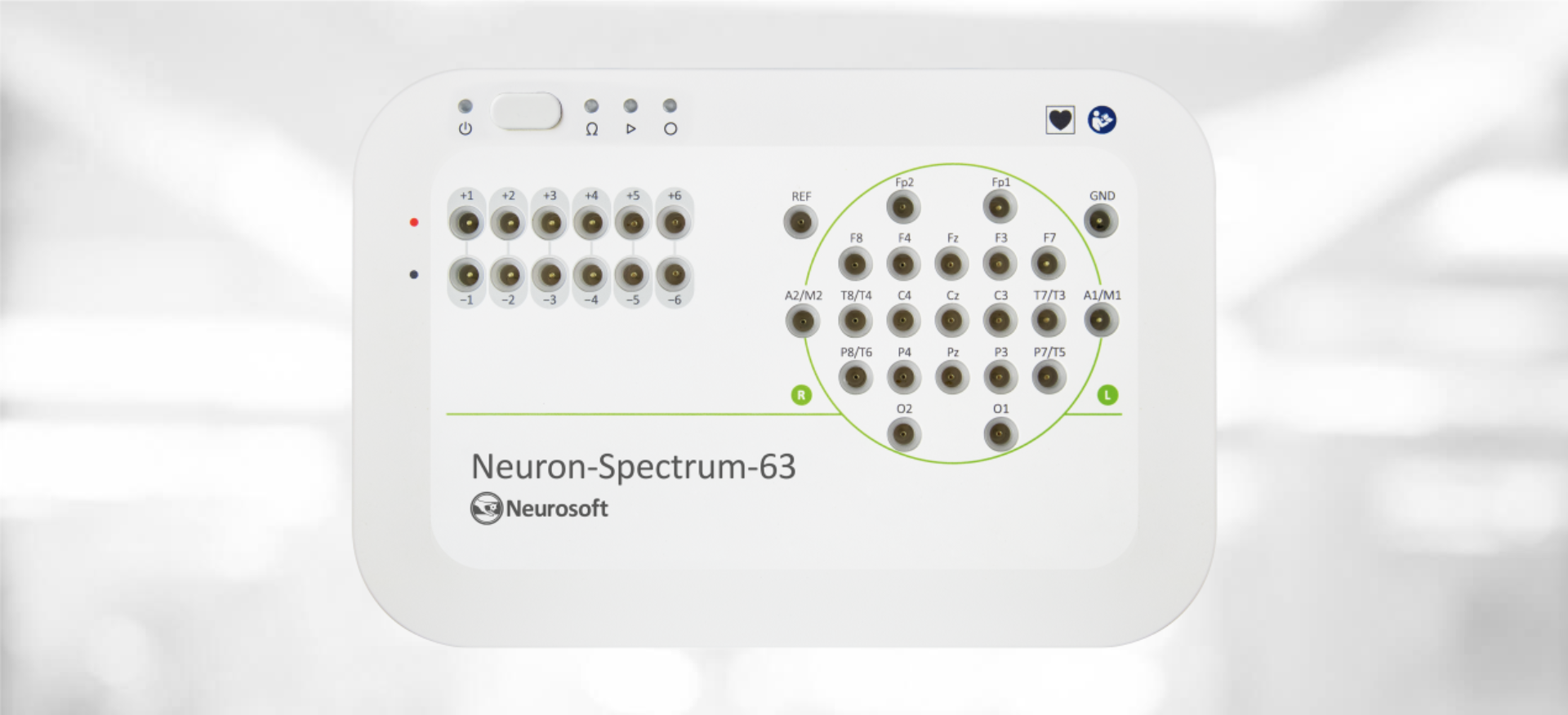

Neuron-Spectrum-63 electronic unit features 21 EEG channels, 1 ECG channel and 6 differential channels for ECG, EOG, EMG acquisition. The channels can work both in AC and DC modes.

Long-latency EP acquisition: visual, auditory and cognitive

The system functionality can be expanded to allow performing CFM, BFB training, video EEG monitoring and also long-latency EP acquisition, particularly visual, auditory, and cognitive.

Dedicated Ref electrode (21 EEG channels), A1, A2 ear electrodes (19 EEG channels), or Cz central electrode (20 EEG channels) can be used as a reference electrode.

Disk, cup and bridge electrodes or electrode caps can be applied

Depending on your specific needs, you can use disk, bridge or cup EEG electrodes. Using the electrode cap was never that simple – no more adapters or other accessories are needed to connect it. The EEG amplifier features standard socket compatible with connectors of electrode caps of different manufactures.

Ease of use and comprehensive software

The intuitive interface and flexibility of Neuron-Spectrum.NET software assure effective and flawless work as it can be adjusted according to the user specific needs.

During EEG analysis the spikes, sharp waves, epileptiform discharges are detected and marked automatically in Neuron-Spectrum.NET software. The excellent trace display quality is achieved by applying the cutting-edge smoothing technologies. The user-friendly solution for quick navigation throughout the entire EEG record streamlines the visual analysis.

The advanced tools for mathematical analysis of EEG are provided as well: amplitude, spectral and bispectral analysis, correlation and coherent analysis, wavelet-analysis, periodometric analysis, independent component analysis (ICA) are always available in all software configurations.

Continuous impedance monitoring during acquisition

The color-coded impedance indication on the lead inputs and continuous impedance measurement during acquisition assist the specialist in signal quality monitoring and, if necessary, with timely adjustment of the electrode position, thus, ensuring superb recording quality. The operating mode can be switched at a push of a button on the front panel of the device whereas the LED indicator next to button will always show the current operating mode.

Advanced tools for mathematical analysis of EEG

During EEG analysis the software automatically detects spikes and sharp waves indicative of abnormal EEG pattern. The excellent trace display quality is achieved by applying the cutting-edge smoothing technologies. The user-friendly solution for quick navigation throughout the entire EEG record streamlines the visual analysis.

The advanced tools for mathematical analysis of EEG are provided as well: amplitude, spectral and bispectral analysis, correlation and coherent analysis, wavelet-analysis, periodometric analysis, independent component analysis (ICA) are always available in all software configurations.

The support of HL7 standard allows integrating all diagnostic Neurosoft systems into the information system of a healthcare facility.

Delivery Set

Neuron-Spectrum-63 electronic unit1 pcs.
Stand for electronic unit SU-31 pcs.
Stand mount1 pcs.
LED photic stimulator PhS-11 pcs.
Stand for LED photic stimulator SU-81 pcs.
Set of EEG electrodes , 23 bridge electrodes NS015106.007, 3 ear electrodes NS015106.0151 pcs.
EEG helmet , blue: 54-621 pcs.
EEG helmet , green: 48-541 pcs.
EEG helmet , yellow: 42-481 pcs.
Cable for bridge or ear EEG electrode, white, 1m20 pcs.
Cable for bridge or ear EEG electrode, red, 1 m2 pcs.
Cable for bridge or ear EEG electrode, black, 1 m1 pcs.
Reusable limb clamp ECG electrode F9024SSC , adult4 pcs.
3-lead ECG cable , 3 m1 pcs.
Technical Manual "Neuron-Spectrum-61, 62, 63, 64, 65"1 pcs.
User manual "Neuron-Spectrum.NET"1 pcs.
Annex to User Manual "Exams Manager"1 pcs.
Package set1 pcs.
Package1 pcs.
License for Neuron-Spectrum.NET software with additional Neuron-Spectrum.NET/EEG software module1 pcs.

The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
