Neuron-Spectrum-62

19-channel Digital EEG System

  • EEG channels + differential channels for any physiological signal type acquisition (ECG, EOG, EMG, etc.)
  • Perfect for EEG studies in children and adolescents
  • Unmatched performance
  • Continuous impedance monitoring during acquisition
  • Advanced tools for mathematical analysis of EEG
  • Standard electrode cap connector
Neuron-Spectrum-62

Neuron-Spectrum-62

Description

For more than a quarter of a century, Neurosoft has been designing and producing various equipment for neurophysiology. Many years of experience and the meticulous work done by our software and hardware engineers have gone into the creation of the highest quality equipment, which is being successfully used at medical facilities all over the world.

Neuron-Spectrum-62 will become a true mate in your daily practice!

EEG channels + differential channels for any physiological signal type acquisition

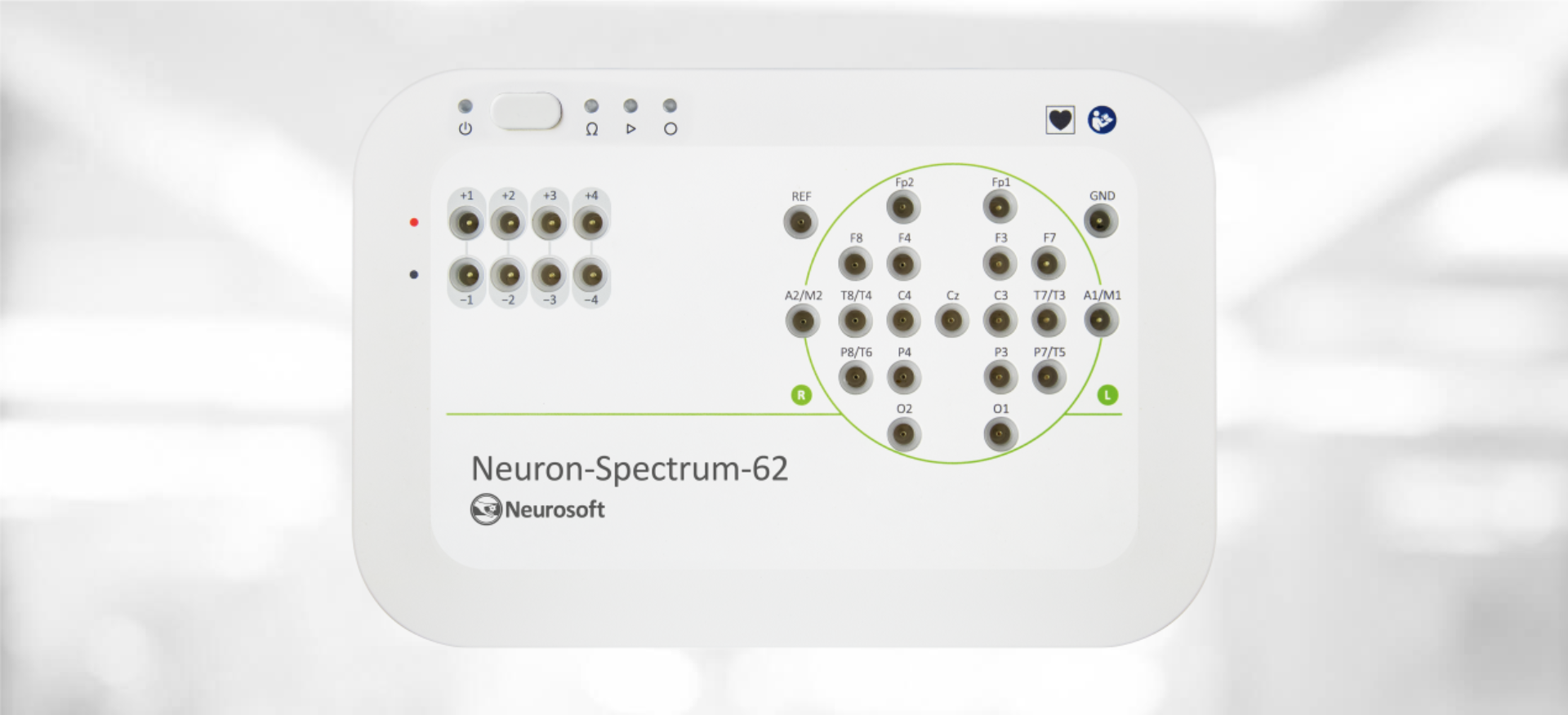

Neuron-Spectrum-62 electronic unit features 19 EEG channels and 4 polygraphic channels for ECG, EOG and other signal type acquisition. The channels can work both in AC and DC modes.

Perfect for EEG studies in children and adolescents

The provided channels of Neuron-Spectrum-62 make it an easy-to-use and effective tool for routine EEG and long-term video EEG monitoring in healthcare facilities, especially for children. The systems allows recording of long-latency and cognitive evoked potentials as well as performing BFB training.

Unmatched performance

The unrivaled technical specifications of the system bring EEG recording to a new level. High sampling rate (up to 16 kHz for a channel) ensures recording of high-frequency components without “swallowing” spikes or sharp waves and without sudden amplitude decrease. Low noise level (<1.4 µV peak-to-peak) allows using minimum EEG filtering or using no filtering at all, thus, storing the essential data for further reference.

Continuous impedance monitoring during acquisition

The color-coded impedance indication on the lead inputs and continuous impedance measurement during acquisition assist the specialist in signal quality monitoring and, if necessary, with timely adjustment of the electrode position, thus, ensuring superb recording quality. The operating mode can be switched at a push of a button on the front panel of the device whereas the LED indicator next to button will always show the current operating mode.

Advanced tools for mathematical analysis of EEG

During EEG analysis the software automatically detects spikes and sharp waves indicative of abnormal EEG pattern. The excellent trace display quality is achieved by applying the cutting-edge smoothing technologies. The user-friendly solution for quick navigation throughout the entire EEG record streamlines the visual analysis.

The advanced tools for mathematical analysis of EEG are provided as well: amplitude, spectral and bispectral analysis, correlation and coherent analysis, wavelet-analysis, periodometric analysis, independent component analysis (ICA) are always available in all software configurations.

Standard electrode cap connector

Even if you use the electrode cap of various manufactures, it can be easily connected via the standard socket of an EEG amplifier. You no longer need any adapters or other accessories, which is time- and cost-effective.

The support of HL7 standard allows integrating all diagnostic Neurosoft systems into the information system of a healthcare facility.

Delivery Set

Neuron-Spectrum-62 electronic unit1 pcs.
Stand for electronic unit SU-31 pcs.
Stand mount1 pcs.
LED photic stimulator PhS-11 pcs.
Stand for LED photic stimulator SU-81 pcs.
Set of EEG electrodes , 21 bridge electrodes NS015106.007, 3 ear electrodes NS015106.0151 pcs.
EEG helmet , blue: 54-621 pcs.
EEG helmet , green: 48-541 pcs.
EEG helmet , yellow: 42-481 pcs.
Cable for bridge or ear EEG electrode, white, 1m18 pcs.
Cable for bridge or ear EEG electrode, red, 1 m2 pcs.
Cable for bridge or ear EEG electrode, black, 1 m1 pcs.
Reusable limb clamp ECG electrode F9024SSC , adult4 pcs.
3-lead ECG cable , 3 m1 pcs.
Technical Manual "Neuron-Spectrum-61, 62, 63, 64, 65"1 pcs.
User manual "Neuron-Spectrum.NET"1 pcs.
Annex to User Manual "Exams Manager"1 pcs.
Package set1 pcs.
Package1 pcs.
License for Neuron-Spectrum.NET software with additional Neuron-Spectrum.NET/EEG software module1 pcs.

The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
