12-Channel Miniature Digital ECG System for Routine ECG Testing
- 12 high-quality standard ECG leads
- high-quality ECG recording under any conditions
- detection of pacemaker pulses
- Poly-Spectrum.NET/Express software for ECG recording and printing
- 5 additional software modules
12 High-Quality Standard ECG Leads

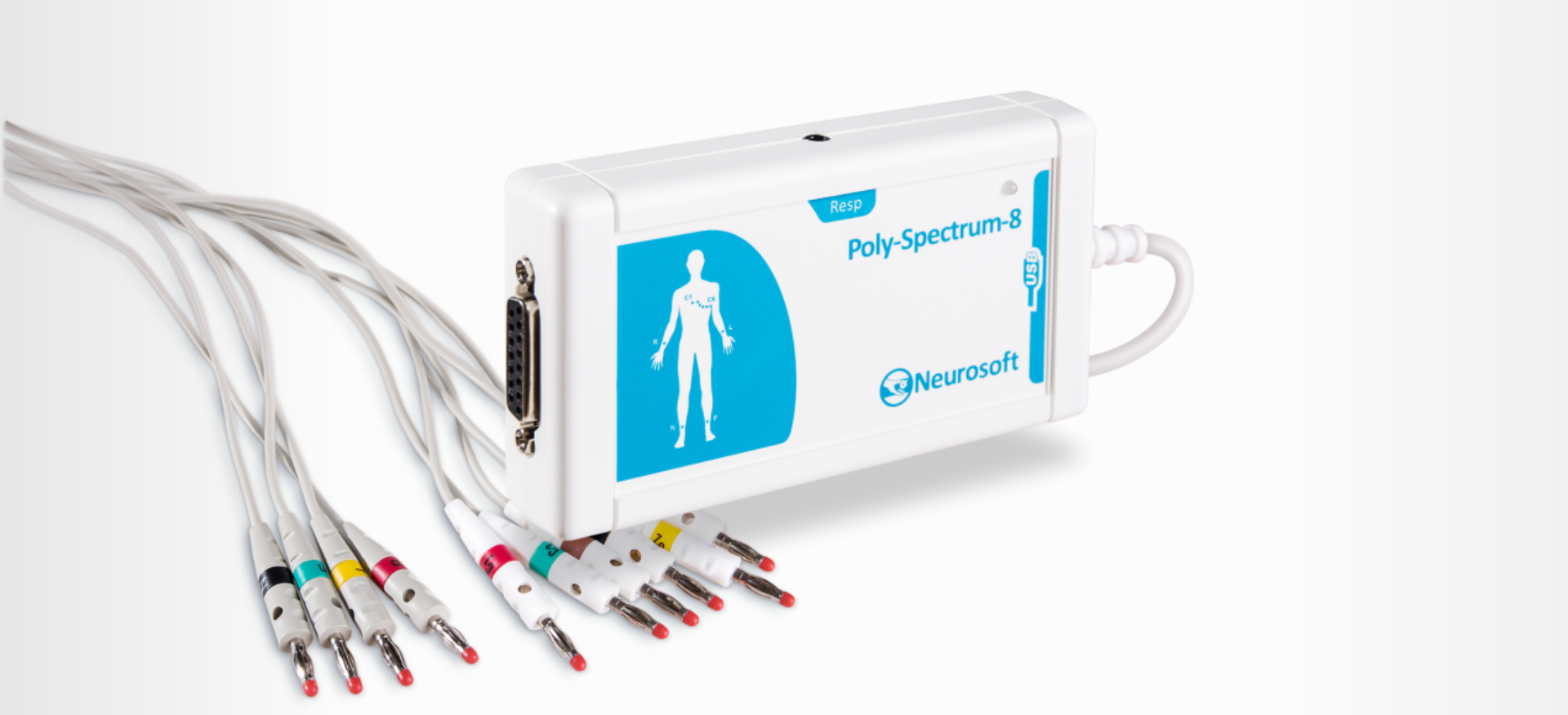

Poly-Spectrum-8/E is a pocket-sized ECG system. It ensures simultaneous ECG recording from 1 to 12 channels. Everything you need is to connect the system to your PC via a USB port.
High-Quality ECG Recording under Any Conditions
Poly-Spectrum-8/E digitizes ECG at a high sampling rate. The system together with a hardware module for compensation of patient cable capacitance caused by its vibrations and a set of powerful digital filters ensures high-quality ECG under any conditions.
Detection of Pacemaker Pulses
A built-in pacemaker pulse detector allows performing examinations of patients with implanted pacemakers and carrying out exercise tests and electrophysiology studies using transesophageal cardiac stimulation.
Poly-Spectrum.NET/Express Software for ECG Recording and Printing
Poly-Spectrum.NET/Express (included in the base delivery set) is an easy and user-friendly software for ECG recording, printing and reviewing. It ensures easy workflow and allows using it for routine exams.
5 Additional Software Modules
The system application can be extended if using the additional software modules:
- Poly-Spectrum.NET/Analysis for ECG measurement and interpretation;
- Poly-Spectrum.NET/Rhythm for heart rate variability analysis. It allows for the study of the autonomic nervous system impact on heart, as well as for analysis of arrhythmias by the correlation rhythmography method;
- Poly-Spectrum.NET/QT for QT interval dispersion analysis;
- Poly-Spectrum.NET/VLP for ventricular late potentials recording and analysis;
- Poly-Spectrum.NET/Ergo for the exercise stress test.
Support of HL7 and DICOM Standard Allows Integrating All Diagnostic Neurosoft Systems into the Information System of a Healthcare Facility
Nowadays all large medical centers and a range of small clinics are equipped with information systems intended to store and process their medical data. To make their workflow reliable and effective the software shall interface with such systems.
HL7 (Health Level 7) is the most commonly used interface engine for the exchange, integration, sharing and retrieval of electronic health information. Neurosoft software supports data exchange via HL7. Nevertheless, HL7 defines just a message format and general principles of data transfer while each specific information system can use its own messaging standards. The specialists of our company can easily set up the software to fit the needs of any clinic and thus provide the most effective integration via HL7.
Neurosoft software also supports DICOM network protocol. Using DICOM modality worklist the diagnostic software can interchange data with the information system of a clinic: obtain data regarding the required studies and transfer the results of performed studies to the information system of a clinic.The support of HL7 standard allows integrating all diagnostic Neurosoft systems into the information system of a healthcare facility.
The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
|Poly-Spectrum-8 electronic unit||1 pcs.|
|10-lead ECG cable with banana connector 3.1 m P.NR.S04325А||1 pcs.|
|Reusable limb clamp ECG electrode F9024SSC||4 pcs.|
|Reusable precordial suction chest ECG electrode F9009SSC||6 pcs.|
|Unispray сonductive electrode spray||1 pcs.|
|Electrode gel Unimax , 250 g||1 pcs.|
|Technical Manual «Poly-Spectrum-8, 8/E»||1 pcs.|
|Warranty certificate||1 pcs.|
|User manual «Poly-Spectrum.NET»||1 pcs.|
|Annex to user manual «Exam Manager»||1 pcs.|
|Transportation bag||1 pcs.|
|License for Poly-Spectrum.NET software||1 pcs.|
