aScreen

Portable Device for Hearing Screening


  • hearing screening using TEOAE and DPOAE techniques
  • easily customizable test templates
  • mobile terminal with a built-in thermal printer
  • Bluetooth for data transfer
  • Android compatible
aScreen

Description

ANVISA BATTERI BLUETOOTH CE CFDA EAC Включено в единый реестр ПО FDA ISO TGA USB WI-FI

Hearing Screening Using TEOAE and DPOAE Techniques

Newborn hearing screening using OAE technique (TEOAE or DPOAE) is a mandatory requirement in many countries of the world, and it is performed for every newborn baby a few days after birth.

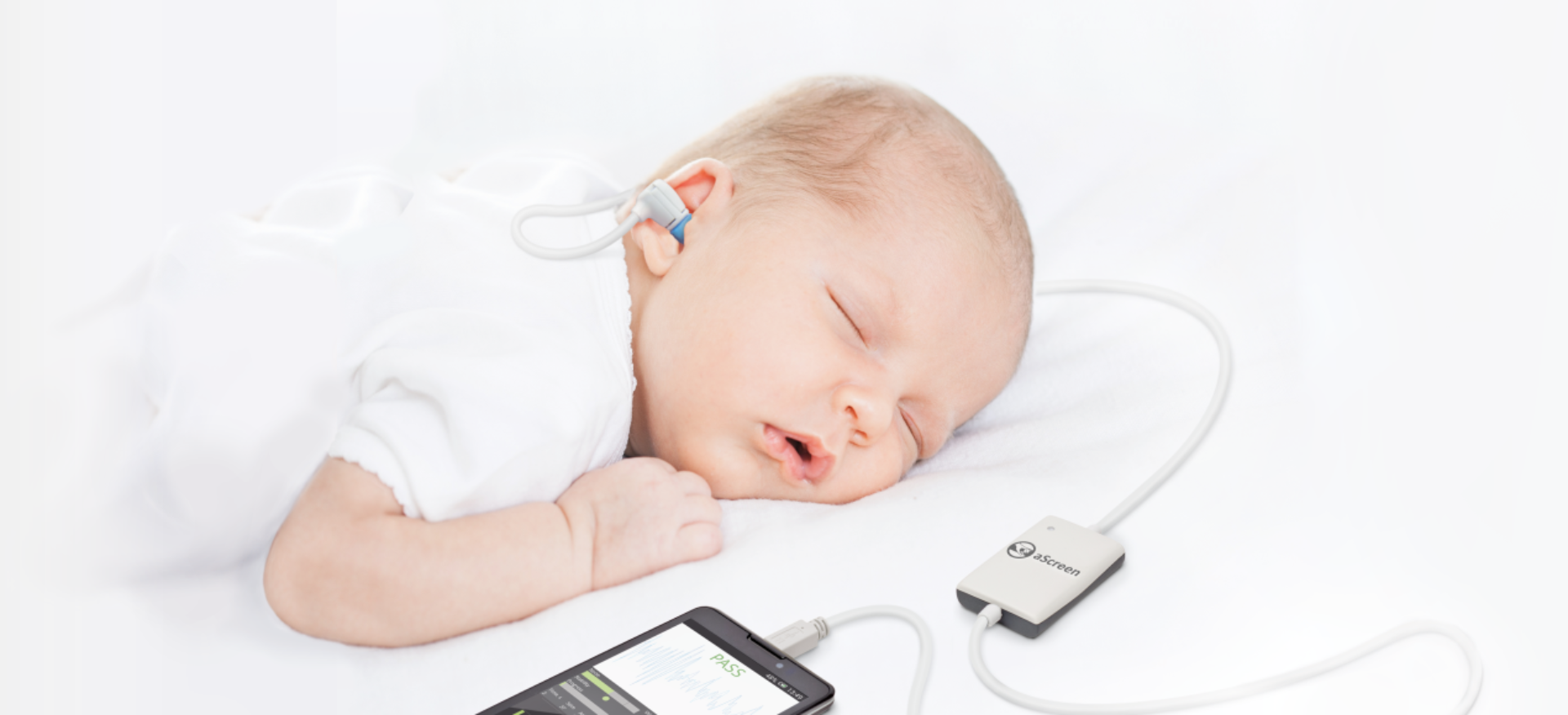

The portable aScreen system ensures fast, accurate and safe screening. The system consists of the OAE probe that can be connected to the mobile terminal using USB-C cable.

To perform the test, select the ear tip of appropriate size and attach it to the probe. Insert the probe gently into the baby’s ear canal, select the desired technique (TEOAE/DPOAE), click the Start button and get the result—PASS or REFER—in a few seconds. You can immediately print the results on the thermal printer, save them to the device memory or copy to the PC software.

Easily Customizable Test Templates

aScreen comes with a set of pre-defined templates that meet the most common recording conditions (Noisy—screening, Normal—screening, Quiet—screening).

Use them or create your own to get the best results any time. Set noise level, intensity, SNR pass criteria and other parameters in the device settings.

Mobile Terminal with Built-in Thermal Printer

aScreen requires no additional equipment to print the results—the mobile terminal features a built-in thermal printer for time-saving result printing.

Maximum reliability of the test results is achieved through using special noise rejection and accurate calibration technologies while thought-out user interface ensures high performance and streamlines the test.

Bluetooth for Data Transfer

Bluetooth interface allows exporting the data from the device to the computer with installed Neuro-Audio-Screen Manager software. This software is supplied with the device; it facilitates managing and archiving the patient database.

Android compatible

aScreen is supplied with a mobile terminal but it can also work with many Android-based smartphones and tablets with USB On-The-Go feature and USB-C connector. All you need is to choose a device with the screen size and battery capacity you are comfortable with.

The support of HL7 standard allows integrating all diagnostic Neurosoft systems into the information system of a healthcare facility.

Delivery Set

The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.

aScreen electronic unit1 pcs.
OAE-05 probe1 pcs.
OAE probe tip3 pcs.
Set of eartips , pediatric1 pcs.
Test cavity1 pcs.
Superfloss Regular dental floss1 pcs.
Probe tip extractor1 pcs.
SUNMI V1S terminal1 pcs.
Bluetooth adapter1 pcs.
Package set1 pcs.
Technical Manual «aScreen»1 pcs.
Warranty certificate1 pcs.
Calibration Guidelines "aScreen"1 pcs.
Guidelines "OAE Probes OAE-02, OAE-03, OAE-04 and aScreen Probe"1 pcs.
License for Neuro-Audio-Screen Manager software without additional modules1 pcs.
