Clinical PSG system and ambulatory PSG recorder (type I or II slep monitor)
- full range of PSG channels in compliance with AASM recommendations
- highly accurate portable PSG recorder
- internal memory card to store PSG studies
- more than 24 hours of recording in autonomous mode
- wireless interface to transfer data to PC
Full Range of PSG Channels in Compliance with AASM Recommendations
Neuron-Spectrum-AM/PSG is a Type I or II sleep monitor according to AASM classiﬁcation and can be used both in inpatient and outpatient settings (with medical attendance in home settings).
There is a full range of PSG channels to ensure maximum eﬃciency:
- Up to 16 EEG channels;
- 2 EOG channels;
- 2 EMG channels;
- 1 ECG channel;
- Channels for:
- thermistor airflow sensor;
- pressure airflow sensor (cannula);
- thorax respiratory effort sensor
- abdominal respiratory effort sensor;
- snoring sensor;
- built-in body position sensor;
- SpO2 and PPG (photoplethysmography) channels;
- 2 EMG channels for limb movement recording.
Highly Accurate Portable PSG Recorder
The present-day diagnostic demands promote the mainstreaming of portable PSG recorders that replace extensive PSG recording equipment used only in a medical facility. The absolute advantage of portable recorders is the possibility to examine patients either clinically or ambulatory ensuring optimum comfort and care. Patients feel comfortable and move freely within the place where they are examined. Besides, PSG study can be performed in an unattended, ambulatory setting. The data is recorded on the internal memory card and then loaded and analyzed with the software in the morning when the exam is finished.

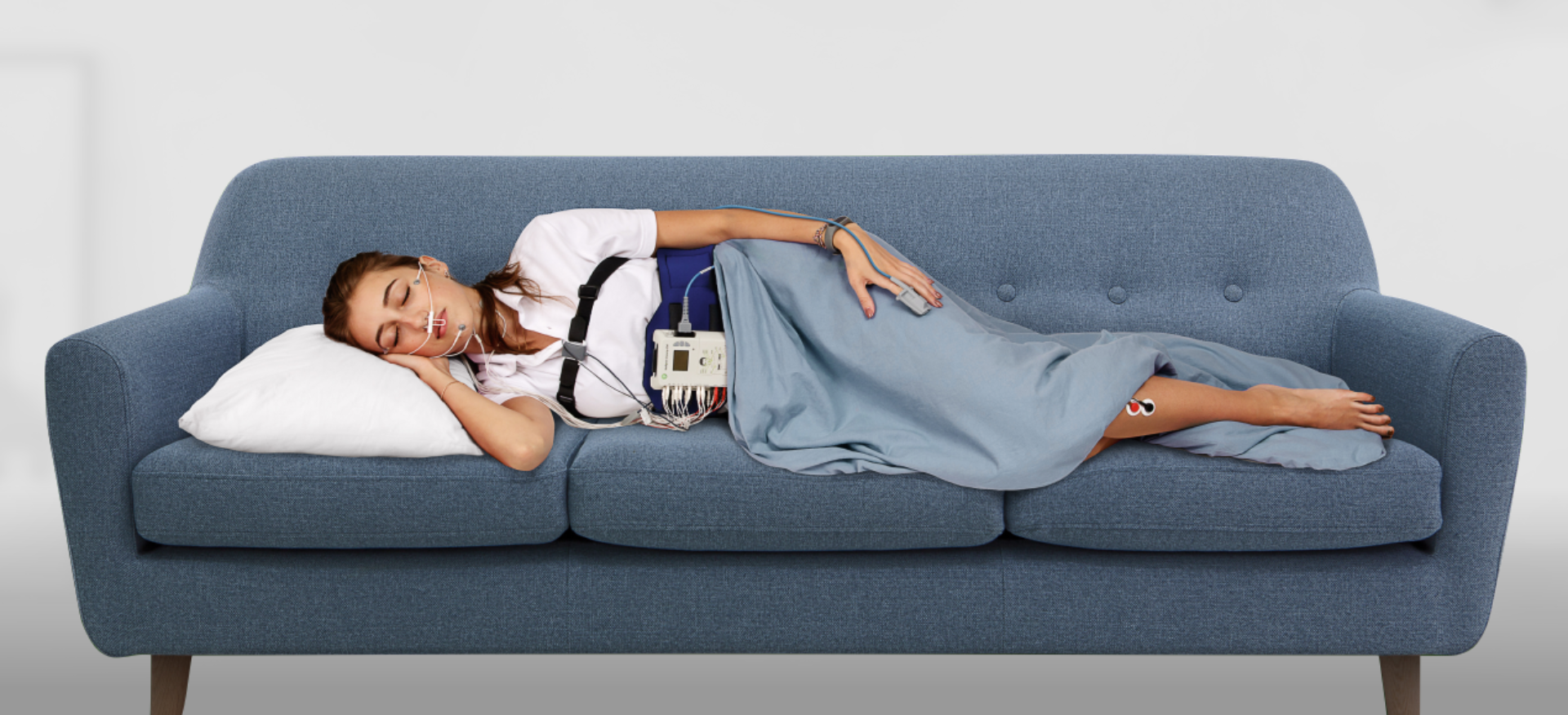

Neuron-Spectrum-AM/PSG is a time-tested and reliable device that ensures high-quality recording during the examination. The lightweight compact unit is fixed easily on the patient’s body. The obtained data is analyzed and interpreted in a short time thanks to flexible personalized software.
Internal Memory Card to Store PSG Studies
The device has 32 GB memory card, on which the data from several PSG studies can be stored. The memory card is connected to PC via Wi-Fi to transfer the examination results to the database.
More than 24 Hours of Recording in Autonomous Mode
During the real-time data transfer via W-Fi, the recorder can operate for about 24 hours from a single battery charge. In the standalone mode, the system operates for about three days and the obtained information is recorded on the memory card. When the battery level is low, the device produces a warning sound. When replacing the battery, the recording continues automatically. Moreover, a backup copy of the examination is created and recorded on the memory card via Wi-Fi to avoid information loss.
Wireless Interface to Transfer Data to PC
The wireless interface allows a specialist to record the data on the computer. There is no need to remove the memory card from the PSG recorder and copy the obtained information to your PC. You can view the data in real time, analyze them during the examination or immediately after it. When working via Wi-Fi, you should not worry about the data loss: even in case of a connection failure (for example, if the patient left the coverage area), all data is duplicated on the memory card and can be easily copied to your PC after the examination.
Synchronous Video Monitoring
The device is synchronized with one, two or three video cameras simultaneously to perform the synchronous PSG video monitoring during the examination. The network IP cameras with a microphone, IR light, and 4x optical zoom are delivered with the system. The cameras can be controlled directly using the software. The synchronous video monitoring ensures more accurate identification of the sleep disorder type.
Powerful Software with Automatic Tools for PSG Analysis
Neuron-Spectrum-AM/PSG is delivered with powerful Neuron-Spectrum.NET software which is ideal for all PSG study types ranging from home sleep apnea testing to more complex studies with additional EEG channels. The recommended workflow, automatic scorings, and calculated indices meet AASM requirements that provides comprehensive recommendations for evaluation, diagnosis, treatment, and follow-up of patients with sleep disorders.
Flexible Neuron-Spectrum.NET software is an essential tool that makes your workflow more efficient. Now, PSG records can be interpreted at least in half the time and user-friendly interface provides quick and easy access to any function of the software.
|Neuron-Spectrum-AM electronic unit||1 pcs.|
|SDHC memory card, 16 Gb||1 pcs.|
|Neoprene belt , 1150 mm||1 pcs.|
|Neoprene belt , 1400 mm||1 pcs.|
|Case for Neuron-Spectrum-AM||1 pcs.|
|Harness , 1100 mm||1 pcs.|
|Harness , 2000 mm||1 pcs.|
|Set of mounting bracket for disposable sensor||1 pcs.|
|Wireless router||1 pcs.|
|Battery charger GP||1 pcs.|
|Cup electrode with cable, white, 1 m||9 pcs.|
|Cup electrode with cable, white, 1 m||3 pcs.|
|Cup electrode with cable, white, 1 m||2 pcs.|
|Cable for disposable electrode with button connector, touch-proof, red, 1.5 m||2 pcs.|
|Cable for disposable electrode with button connector, touch-proof, black, 1.5 m||2 pcs.|
|Cable for disposable electrode with button connector, touch-proof, red, 1 m||2 pcs.|
|Cable for disposable electrode with button connector, touch-proof, black, 1 m||2 pcs.|
|Disposable ECG electrode pediatric PG10S||30 pcs.|
|Set of chest belts||1 pcs.|
|Airflow sensor AS-8/A-10 , for Neuron-Spectrum-AM, 1 m, adult||1 pcs.|
|Airflow sensor AS-8/P-10 , for Neuron-Spectrum-AM, 1 m, pediatric||1 pcs.|
|Snoring sensor SS-1-08 , 0,8 m, for Neuron-Spectrum-AM||1 pcs.|
|Inductive thorax and abdominal effort sensor "IES-1-05" , for Neuron-Spectrum-AM, 0.5 m||1 pcs.|
|PTZ IP Dahua 4x zoom dome camera||1 pcs.|
|Hanging Mount Adapter Dahua PFA103||1 pcs.|
|Wall Mount Bracket Dahua DH-PFB3025||1 pcs.|
|Video camera tripod HAMA Star61,600-1530 mm||1 pcs.|
|Power unit GS2E-12P1Jl||1 pcs.|
|Video camera mount||1 pcs.|
|Patch cord UTP||1 pcs.|
|Extension cable||1 pcs.|
|Adult Nasal Cannula, 37 in||9 pcs.|
|Adapter for nasal cannula MTLL230-9||1 pcs.|
|Medical tape Transpore , 5 sm х 9.1 m||1 pcs.|
|Electrode adhesive paste TEN20 , 114 g.||1 pcs.|
|Technical Manual "Neuron-Spectrum-AM"||1 pcs.|
|Technical manual "Airflow Sensors AS-7, AS-8, AS-9, AS-10"||1 pcs.|
|Technical Manual "Snoring Sensor SS-1"||1 pcs.|
|Technical Manual "Electrodes for EMG and EP Studies"||1 pcs.|
|Guidelines "Dahua DH-SD29204T-GN Video Camera"||1 pcs.|
|License for the use of software "Neuron-Spectrum.NET" with additional software module "Neuron-Spectrum.NET/PSG"||1 pcs.|
|License for the use of software "Neuron-Spectrum.NET" with additional software module "Neuron-Spectrum.NET/Video"||1 pcs.|
