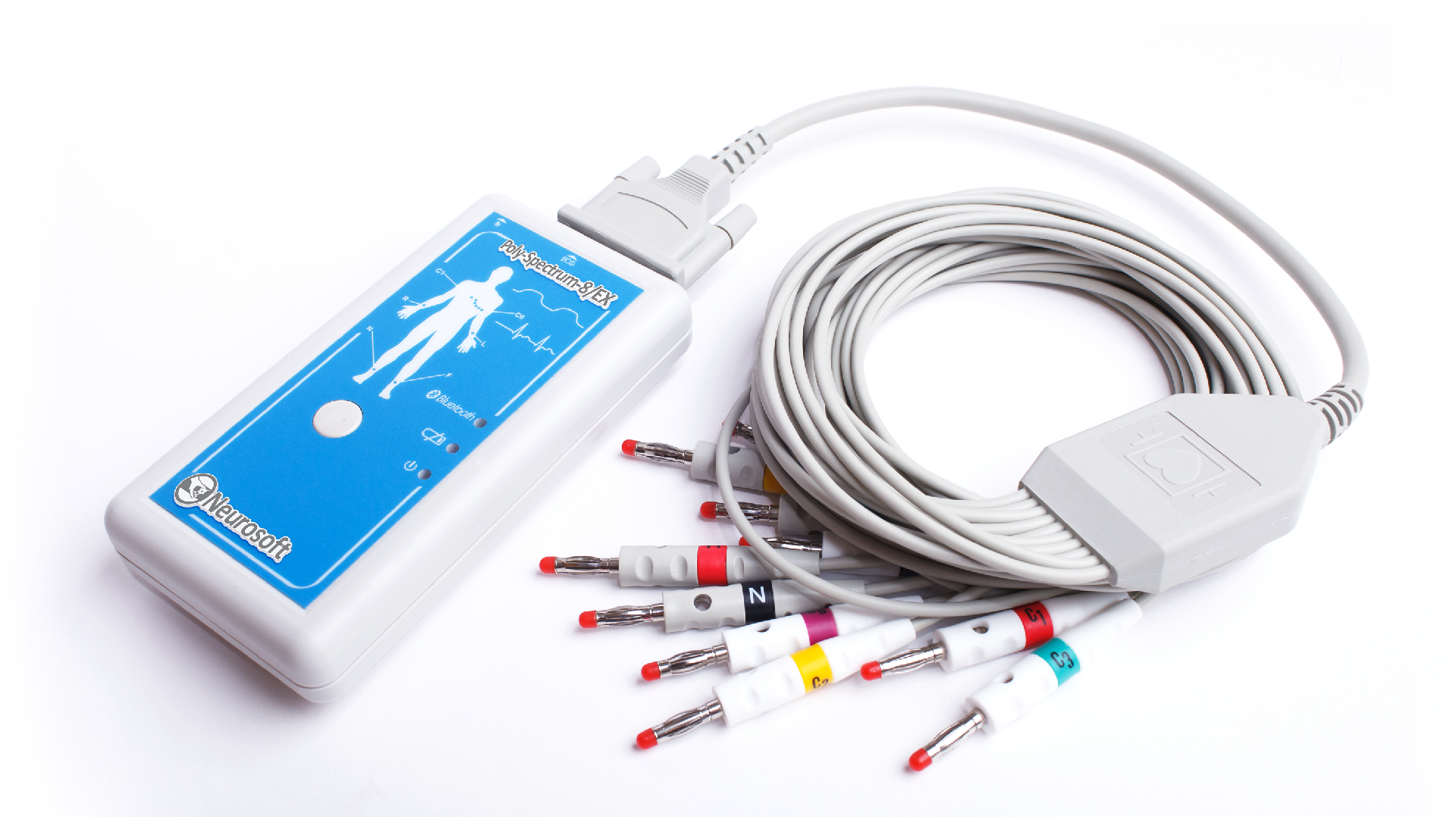

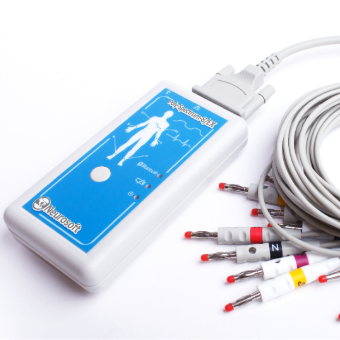

12-Channel Miniature Wireless Digital ECG System
- best choice for exercise stress testing
- wireless and portable
- Android compatible
- advanced 12-channel ECG recording
- high-quality ECG recording under any conditions
- automatic ECG measurement
- support of CPET systems
Best Choice for Exercise Stress Test

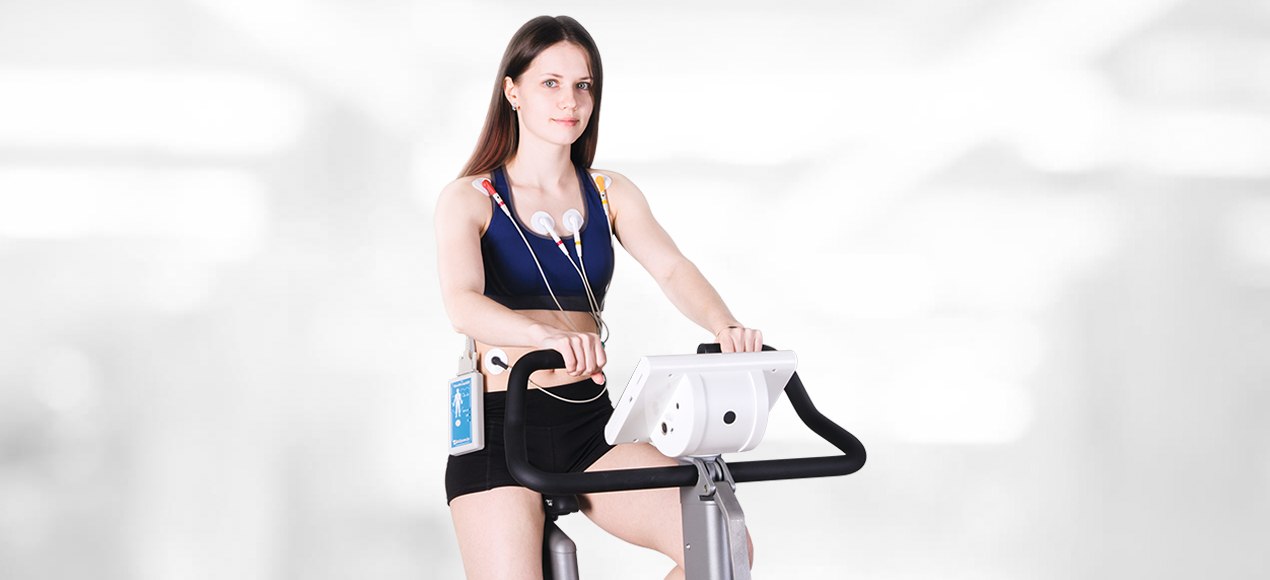

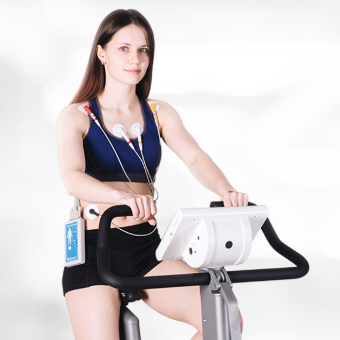

Treadmill and cycle ergometry tests, orthostatic test and test on Bárány chair demonstrate all possibilities of Poly-Spectrum-8/EX. Under the workload condition, you can really see the advantages of wireless ECG. The ECG recorder is fixed on a patient which allows using a shorter cable and thereby reduce noise interference caused by cable vibrations common for conventional ECG systems!
Our Poly-Spectrum.NET software supports bicycle ergometers and treadmills of different manufacturers – Lode, GE Healthcare, Ergoline, Kettler, etc.* However, this list can be enhanced upon your request.*
Wireless and Portable
The system is powered from two AA batteries and can transfer ECG via Bluetooth for up to a 7-meter distance!
Poly-Spectrum-8/EX differs from other Neurosoft ECG systems as it can operate on Windows PC as well as on the mobile phone using the special application. The application can be installed on any Android smartphone or tablet.
Advanced 12-Channel ECG Recording
Poly-Spectrum-8/EX digital system allows recording ECG from 1 to 12 channels and respiratory data from 1 channel. The system also ensures automatic ECG measurement and interpretation, storing and printing.
Stores Raw ECG
If you forgot to enable a high-pass filter when recording ECG, you can do it during ECG encryption as the recorded data is stored unfiltered.
High-Quality ECG Recording under Any Conditions
Poly-Spectrum-8/EX digitizes ECG at a high sampling rate. The system together with a hardware module for compensation of patient cable capacitance caused by its vibrations and a set of powerful digital filters ensures high-quality ECG under any conditions.
Automatic ECG Measurement
Poly-Spectrum-8/EX includes Poly-Spectrum.NET/Analysis software (base delivery set) for ECG measurement.
In ECG measurement mode, a physician can see the selected QRS complex or the one averaged by the selected epoch. The software automatically sets the markers in the reference points of the QRS complex. The automatically generated report is shown in the same window. By clicking the QRS complex at any trace, a physician can zoom the trace for a detailed view, perform the necessary measurements and correct marker positions manually.
Support of CPET Systems
Poly-Spectrum-8/EX ensures integration with the METALYZER 3B (Cortex, Germany) and Ergostik (Geratherm, Germany) gas analysis systems to perform cardiopulmonary stress test. It is compatible with exercise equipment of other world-known manufacturers (GE Healthcare, h/p/cosmos, Kettler, etc.).
*If your exercise machine is not supported by our Poly-Spectrum.NET software, we can easily integrate it! After the exercise machine manufacturer approval, we can add it using the obtained data exchange protocols.
Support of HL7 and DICOM Standard Allows Integrating All Diagnostic Neurosoft Systems into the Information System of a Healthcare Facility
Nowadays all large medical centers and a range of small clinics are equipped with information systems intended to store and process their medical data. To make their workflow reliable and effective the software shall interface with such systems.
HL7 (Health Level 7) is the most commonly used interface engine for the exchange, integration, sharing and retrieval of electronic health information. Neurosoft software supports data exchange via HL7. Nevertheless, HL7 defines just a message format and general principles of data transfer while each specific information system can use its own messaging standards. The specialists of our company can easily set up the software to fit the needs of any clinic and thus provide the most effective integration via HL7.
Neurosoft software also supports DICOM network protocol. Using DICOM modality worklist the diagnostic software can interchange data with the information system of a clinic: obtain data regarding the required studies and transfer the results of performed studies to the information system of a clinic.
|Poly-Spectrum-8/EX electronic unit||1 pcs.|
|Belt for electronic unit fixation||1 pcs.|
|ECG cable, 1.3 m||1 pcs.|
|Adapter for disposable electrodes connection||1 pcs.|
|Reusable limb clamp ECG electrode F9024SSC , adult||4 pcs.|
|Reusable limb clamp ECG electrode F9024 , pediatric||4 pcs.|
|Reusable precordial suction chest ECG electrode F9009SSC||6 pcs.|
|Reusable precardial suction chest ECG electrode F9009SSC , pediatric||6 pcs.|
|Reusable peripheral plate electrode for limb F9024 , 30 х 20 mm), (Fiab, Italy||4 pcs.|
|Reusable peripheral plate electrode for chest F9024 ,, Fiab, Italy) (15 х 20||6 pcs.|
|Disposable ECG electrode F9079||50 pcs.|
|Disposable ECG electrode PG10S , Fiab, Italy||30 pcs.|
|Bluetooth adapter||1 pcs.|
|USB extension cable||1 pcs.|
|Battery charger GP||1 pcs.|
|Rubber belt for ECG electrode fixation on the chest||2 pcs.|
|Conductive electrode spray Unispray , 200 g.||1 pcs.|
|Electrode gel Unimax , 250 g||1 pcs.|
|Electrode fixation tape , 300 mm||2 pcs.|
|Electrode fixation tape , 500 mm||2 pcs.|
|Rubber tape fixator||1 pcs.|
|Technical Manual "Poly-Spectrum-8/ЕХ"||1 pcs.|
|User manual "Poly-Spectrum.NET"||1 pcs.|
|Package set||1 pcs.|
|License for the use of software "Poly-Spectrum.NET"||1 pcs.|
|License for the use of software "Poly-Spectrum.NET" with additional software module "Poly-Spectrum.NET/Analysis"||1 pcs.|
The delivery set can differ from country to country. Request the actual delivery set for your country from your local representative.
