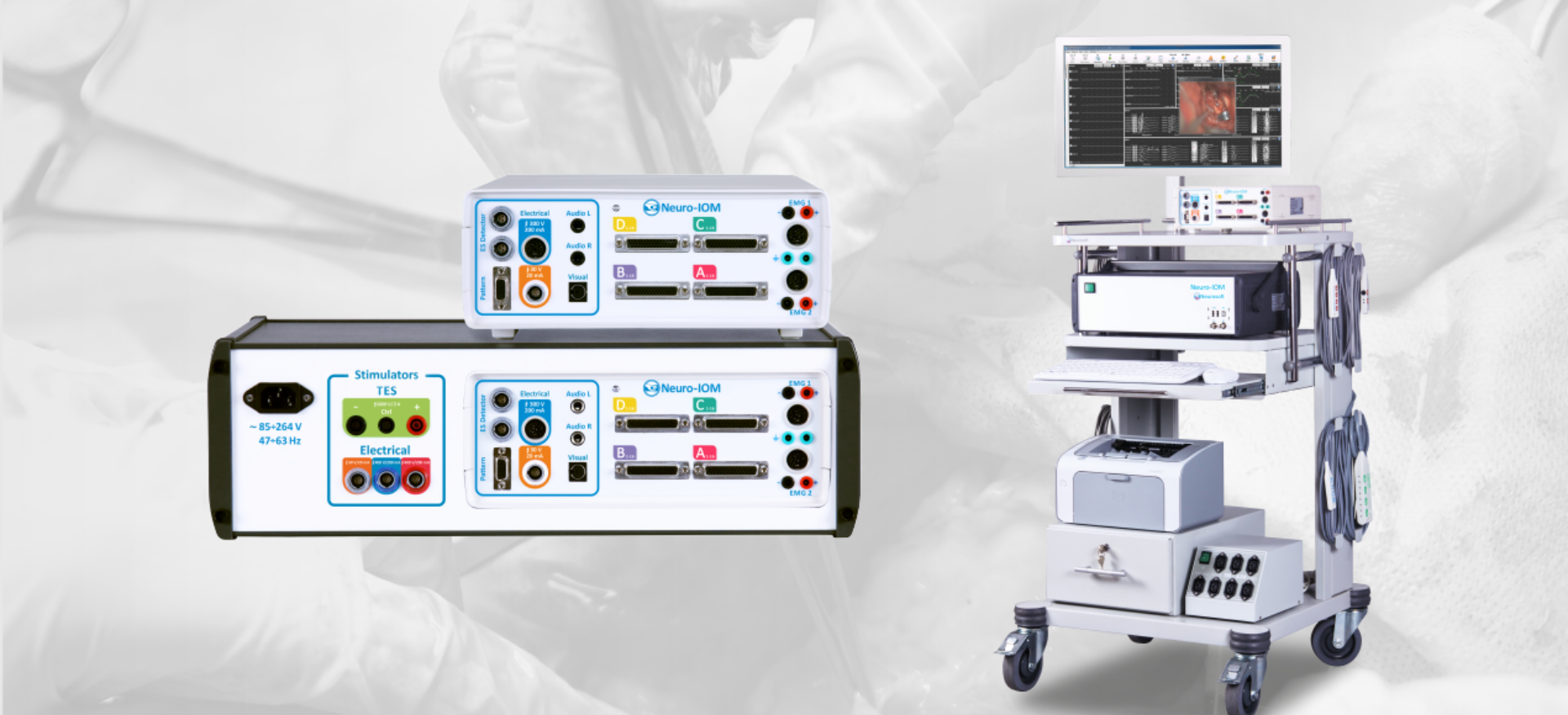

Expert Class 64-channel System for Intraoperative Neurophysiological Monitoring
- enhanced SEP acquisition
- enhanced MEP acquisition with a switching function and a wide range of stimulation parameters
- 64 amplifier channels
- auditory and visual evoked potentials, EMG, direct nerve stimulation, EEG, ECoG — more than 10 monitoring modalities
- transcranial electrical stimulator — up to 1000 V
- flexible configurations to ensure any monitoring needs
Neuro-IOM is a multifunctional modular platform solution for intraoperative neurophysiological monitoring (IONM). Its application allows the surgical team to be informed about possible damage of nerve tissues resulting from surgeon actions and, thus, to prevent neurological deficit.
In most countries intraoperative neurophysiological monitoring is a must in various types of surgery, i.e., spine surgery, brain surgery, brainstem surgery, etc. As for the spine surgery (for example, scoliosis) the tactics is directly determined during IONM. Currently, the technique is being implemented actively in our country.
Neuro-IOM is the first Russian intraoperative neurophysiological monitoring system. The large experience in development and manufacture of neurophysiological equipment helped Neurosoft company to enter the IONM market rapidly several years ago. The system was registered in Russia and then the company had got the CE mark to sell the system in European countries. Now, more than hundred of Neurosoft Neuro-IOM systems are used successfully in hospitals and other healthcare facilities of Russia, Brazil, France, Jordan, Turkey, Bulgaria and other countries.
Fundamental IONM with expert class configuration
The expert configuration of Neuro-IOM (version 2) allows performing intraoperative neurophysiological monitoring using 64 channels. The system also includes the electrical stimulator channels and transcranial electrical stimulator channels to control peripheral and motor pathways.
- 64 amplifier channels;
- 4 dedicated channels for routine EMG, NCS and EP;
- 16 channels for electrical stimulation;
- direct nerve stimulation channel;
- 4 channels for transcranial electrical stimulation;
- auditory, visual and pattern stimulator channels;
- ES detector channels.
The Neuro-IOM system is equipped with the acquisition and stimulator pods to attach recording and stimulating electrodes with 5 m cables. It allows arranging the system at a distance from the operating table to ensure free movement for the surgical team. The set of specially-designed electrodes and the software are also included to the delivery set.
Two-in-one: IONM device and 2-channel EMG/EP system
Neuro-IOM can be used as the EMG/EP system, the acquisition channels and all necessary stimulators are built in. This advanced 64-channel configuration of the system includes 4 additional channels for EMG and EP acquisition, while the standard 32-channel configuration includes 2 additional EMG channels.
When the Neuro-IOM system is not in the operating room, it can be used as a common EMG system. Not just an EMG system, but the one produced by Neurosoft!
Motor, somatosensory, auditory and visual evoked potentials, EMG, direct nerve stimulation, EEG, ECoG — more than 10 modalities for intraoperative neurophysiological monitoring
The Neuro-IOM system is delivered with the preset templates ensuring the following modalities:
- direct nerve stimulation;
- free-run EMG;
- somatosensory evoked potentials (SEP);
- motor evoked potentials (MEP);
- auditory evoked potentials (AEP);
- visual evoked potentials (VEP);
- direct cortical stimulation;
- train-of-four stimulation (TOF).
Using these modalities the surgical team can control motor and sensory pathways, monitor peripheral nerve integrity, assess the brain activity and perform mapping of its functional areas, etc.
Transcranial electrical stimulator (up to 1000 V), 16-channel electrical stimulator, low current stimulator, auditory and visual stimulators
Robust stimulators ensure high-quality responses during acquisition of brain evoked potentials and EMG exams.
Transcranial electrical stimulator deserves the special attention. It is intended for stimulation of motor cortex to record motor evoked potentials from muscles. The stimulator ensures single pulse and train stimulation, as well as double train and train + pulse stimulation.
Flexible configurations to ensure any monitoring needs
The Neuro-IOM.NET software provides a set of default templates for various types of surgeries. Each template includes the settings of modalities for a particular type of surgery, test window layouts, acquisition and stimulation parameters, etc. The system has a vast number of channels and stimulators with separate adjustment. Use of preset templates simplifies and speeds up the system setup for surgery.
You can always change and save the settings of any surgery template. It is a unique option for such kind of systems. There is no IONM system in the world that is so flexible!The support of HL7 standard allows integrating all diagnostic Neurosoft systems into the information system of a healthcare facility.
|Cable for disposable electrode with button connector, touch-proof, black, 2 m||1 pcs.|
|Cable for disposable electrode with button connector, touch-proof, yellow, 2 m||1 pcs.|
|Cable for disposable electrode with button connector, touch-proof, blue, 2 m||2 pcs.|
|Visual stimulator PhS-4 , LED goggles||1 pcs.|
|ES detector clip||2 pcs.|
|Insert earphones ER3С-10||1 pcs.|
|2RCA-2RCA cable for surgical microscope||1 pcs.|
|Video capture device||1 pcs.|
|Medical tape Transpore , 5 sm х 9.1 m||4 pcs.|
|Isolation transformer «ТМ-630»||1 pcs.|
|Technical Manual "Neuro-IOM"||1 pcs.|
|Technical Manual "Electrodes for EMG and EP Studies"||1 pcs.|
|User manual "Neuro-IOM.NET"||1 pcs.|
|Annex to User Manual "Exams Manager"||1 pcs.|
|Guidelines «Train-of-four Stimulation », TOF||1 pcs.|
|Guidelines «Facial Nerve»||1 pcs.|
|Guidelines «Motor Evoked Potentials », MEP||1 pcs.|
|Guidelines «Somatosensory Evoked Potentials », SEP||1 pcs.|
|Guidelines «Auditory Evoked Potentials », AEP||1 pcs.|
|Guidelines «Thyroidectomy»||1 pcs.|
|Guidelines «Pedicle Screw Test»||1 pcs.|
|Transportation bag||1 pcs.|
|Transportation bag||2 pcs.|
|License for the use of software "Neuro-IOM.NET"||1 pcs.|
